EnergyBoard

The indoor, wall-mounted battery your building’s intelligence acts through.

Explore BoardOS →See what we’ve measured →
UL 9540 →NFPA 855 →
Two kilowatts. Five kilowatt-hours.

On its own, an EnergyBoard is unremarkable. That is the point.

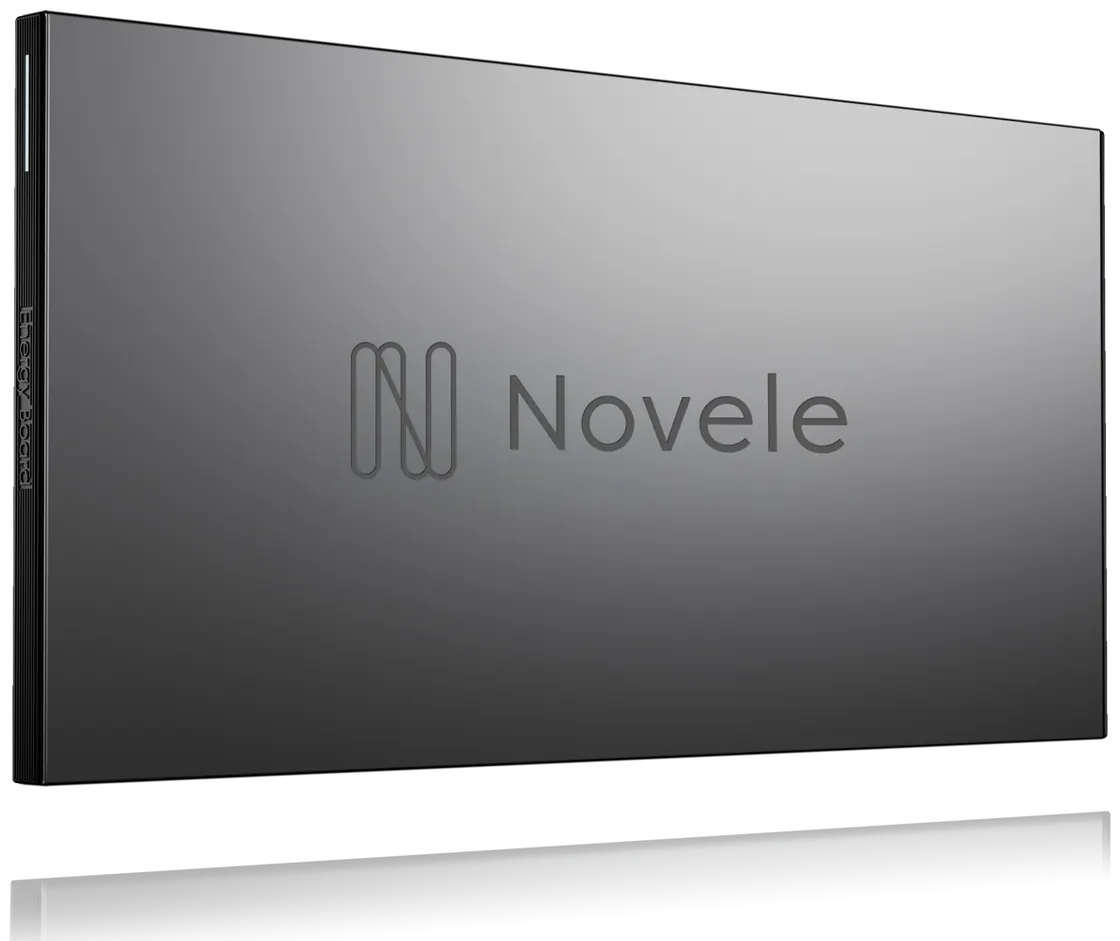

EnergyBoard product render

EnergyBoard does not ask a building to use less energy. It asks the building to use the same energy, differently.

Scale

Retrofit a building over five years. Suite by suite, floor by floor.

Because the unit is small, the system never has to be the right size on day one. Add boards as you lease the building — no forklift, no re-engineering, no capacity sitting idle waiting for a load that hasn’t arrived.

Day one · 0 of 15 suites0 boards · 0 kWh · 0 kW
Without boards: the peak is inside the service capacity.With boards: the building has its original service capacity.
F1F2F3F4F5WITHOUTWITHSERVICE CAPACITYBOARDOS
Illustrative building, schedule and load. Each suite adds five boards and tenant load; BoardOS links every new board into the same system, and the peak stays under the service capacity.
Milliseconds and decades
EnergyBoards act in milliseconds.
Their consequences last decades.

EnergyBoards react to a price signal, a demand curve, a piece of equipment starting up two floors away — faster than a person can perceive. The owner is watching a different set of numbers: what the building costs to run, what it can offer a tenant, and whether it will ever need an expensive electrical upgrade. Thousands of the first, added up over years, move the second.

Same event, two clocks.

Functional obsolescence

A building does not fail. It simply stops being able to say yes.

A tenant wants to add EV charging. A floor is converting to lab space. A prospect needs more compute than the riser can carry. Somewhere in the diligence, someone pulls the one-line diagram and discovers the service is spoken for.

At that point the options are a utility upgrade measured in years and millions, or a smaller tenant.

EnergyBoard creates headroom inside the service you already have. Capacity becomes something the building can grow, incrementally, instead of something it was allocated in 1987 and has been spending down ever since.

For an owner, that is not an energy product. It is the difference between an asset that can accept the next decade of demand and one that cannot.

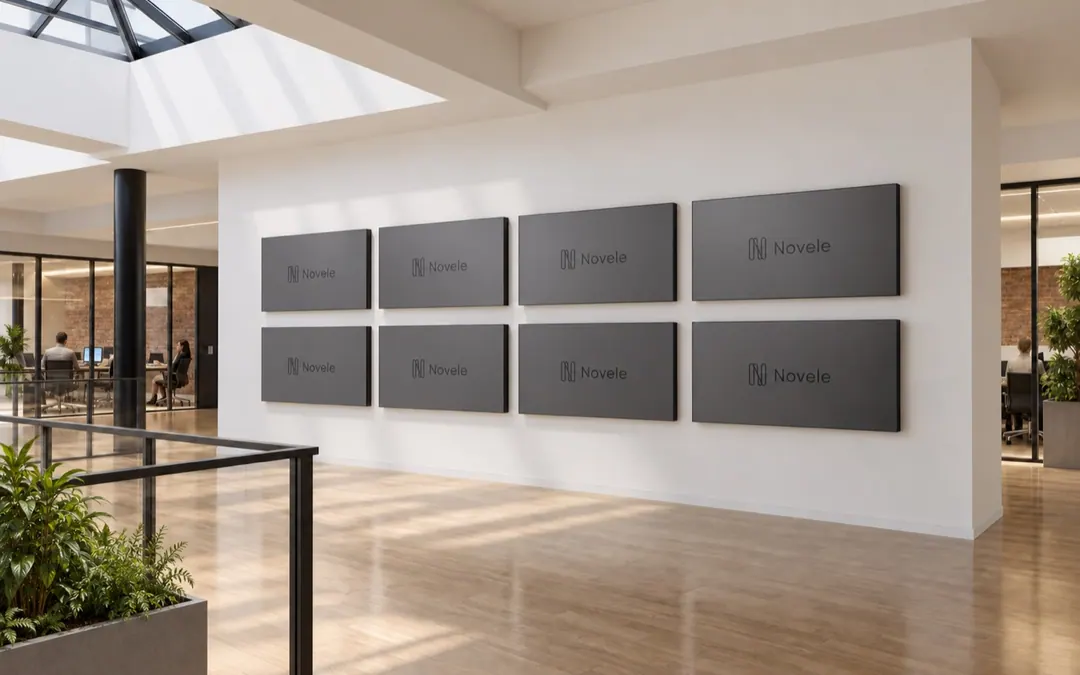

EnergyBoard array, office atrium
EnergyBoard array installed in a building lobby
New development

Right-sizing what has not been built yet.

In new development, the opportunity arrives before the building does.

Size the electrical service to the maximum every piece of equipment could ever draw — the way it is normally done — and you pay for a peak the building will never see: in the transformer, the switchgear, the wiring, and the utility connection, on day one and every day after.

Design EnergyBoard in from the start and the peak becomes something you set, not something you inherit. The service gets sized to what the building will actually do, and the saving lands in the construction budget before a shovel moves.

Specifications

The unit.

Power
2 kW continuous / 2.64 kW peak (DC)
Energy
5 kWh per unit
Chemistry
Lithium iron phosphate (LiFePO₄ / LFP), chosen for stability, not energy density
Dimensions
65.1 × 32.5 × 2.1 in (1653 × 825 × 52 mm)
Weight
236 lb (107 kg)
Cycle life
>3,500 cycles
Warranty
10 years
Operating temperature
50–113°F (10–45°C)
Fire testing
Completed large-scale fire testing to the newest edition of the standard fire departments reference, before the code required it. The result: units can be installed more than 60% closer together, so more capacity fits in the space you have.
Enclosure rating
UL 50 Type 1, the same enclosure standard as the electrical equipment already in your building
NFPA 855
Meets the national fire code for energy storage, what your fire marshal will check
Thermal management
Ambient temperature by design: about 30°C, with no fans or active cooling
Certifications
UL 9540A, UL 9540, UL 1973, UN 38.3
Configuration
Modular, parallel, no fixed maximum
Installation
Indoor, occupied commercial space
Control
BoardOS, circuit to portfolio
The grid is not short of power. It is short of intelligent control.

That control does not get installed at the power plant. It gets installed at the panel, on the floor, in the building, one board at a time.
